Features

Level switches of the SPS range are used for monitoring and/or controlling fluid levels in vessels, with alarm and/or control of automatic refill units. The SPS is suitable for deployment with the TS1016/A007, TS2000, TS4000 and TS5000 range.

Advantages

  • Monitoring of several levels with a single level switch possible
  • Reliable and rugged technology
  • For temperatures of up to 250°C
  • Simple installation in the vessel from above
  • Wide range of applications throughout the processing industry

Functional description

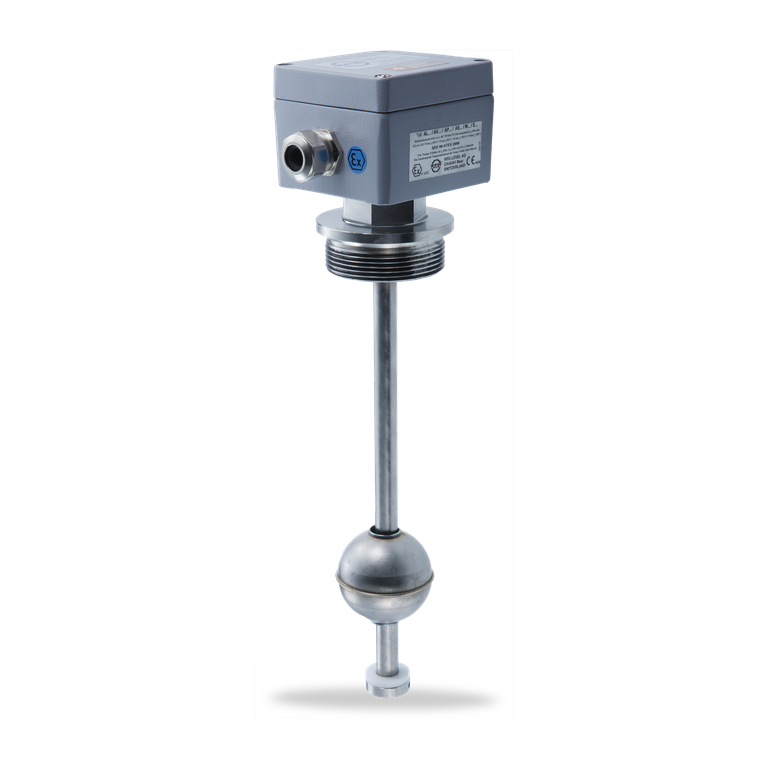

Level switches of the SPS range function by means of the floating ball principle. Float switches are actuators which are activated when a floating ball is moved by a fluid. The switch consists of a sliding tube with reed contact inserts and a floating ball fitted with a ring magnet on the inside. The floating ball rises when the fluid level in the vessel rises and the magnetic field of the ball actuates a reed contact through the wall of the sliding tube.



Product variants

Designation SPS
2000-00
SPS
2000/A002
SPS
2000/A103
SPS
2000/A201
SPS
2000/A202
SPS
2000/A800
SPS
2100/A101
SPS
2100/A002
Type
Float switch with 1
protective reed contact
Float switch with 2
protective reed contacts
Float switch with 3
protective reed contacts
Float measuring transducer
Switching points
MIN level
MIN /MAX level
MAX level
Contact / signal function
Change over switch
Breaker
Norm. 16 mA, alarm 8 mA
4 ... 20 mA
Malfunction
3.6 or 21 mA
Harzardous duty approval
Zone 1 (Ex ib IIC T4)
Zone 1 (Ex d(e) IIC T4-T6)
Zone 0 (Ex c ia IIC T3-T6)
Ex-certificate
Certificate acc. ATEX
Allowable pressure (medium)
30 bar (435 PSI),
Test pressure 40 bar (580 PSI)
40 bar (580 PSI),
Test pressure 52 bar (754 PSI)
40 bar (580 PSI),
Test pressure 60 bar (870 PSI)
100 bar (1450 PSI),
Test pressure 130 bar (1,885 PSI)
Allowable temperature (medium)
120 °C (248 °F)
150 °C (302 °F)
180 °C (356 °F)
250 °C (482 °F)
Min. density of medium
0.7 g/cm³
0.4 g/cm³
Material / weight
Wetted parts 1.4571 1.4571 1.4571 1.4571 1.4571 1.4571 1.4571 1.4571
Weight (approx.) 1.7 kg
(3.75 lbs.)
1.7 kg
(3.75 lbs.)
1.7 kg
(3.75 lbs.)
1.7 kg
(3.75 lbs.)
1.7 kg
(3.75 lbs.)
1.7 kg
(3.75 lbs.)
1.7 kg
(3.75 lbs.)
1.7 kg
(3.75 lbs.)

Other versions on request.
