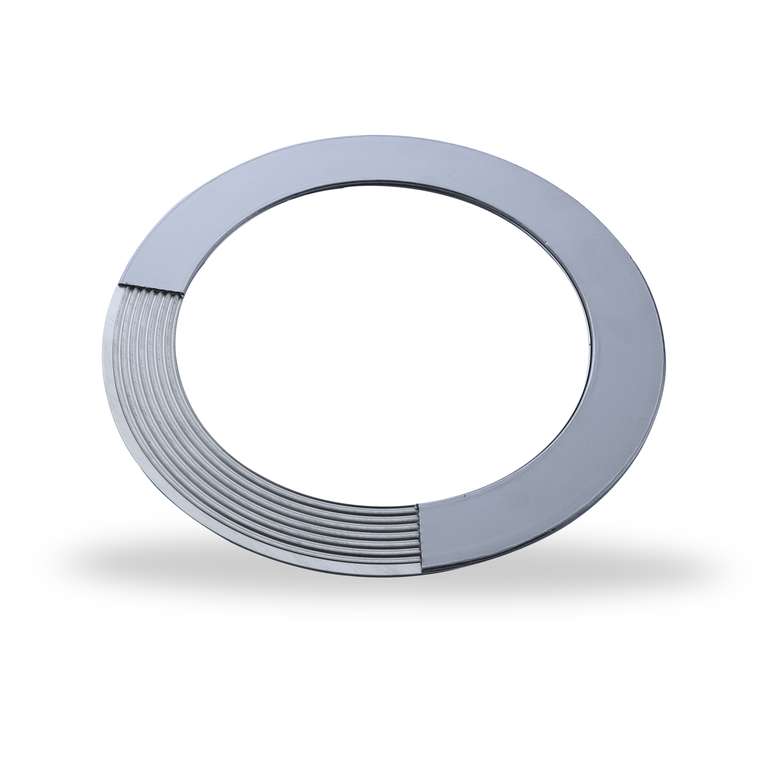

The Corratherm 9631/P corrugated gasket is a high-quality two-component gasket made from flexible graphite and stainless steel. Its core is made of a corrugated stainless steel profile ring with flexible expanded Statotherm graphite foil (purity ≥ 99.85 %) on both sides. Gaskets with an outer diameter up to 1,000 mm are produced in a single piece, while for larger dimensions, the metal base plate must be produced in multiple segments and welded together.


  • High gas tightness
  • High compressive strength
  • High compressibility
  • Excellent resiliency even at a continuous operating temperature of 400 °C
  • High blow-out resistance
  • Easy to handle

Operating range

Pressure: p = 100 bar
  • Continuous operation:
    t = -200 °C ... +500 °C
Recommended surface roughness: RZ = 25...50 µm
Chemical resistance: pH = 0 … 14


Corrugated metal base plate in 1.4571 (AISI/ASTM 316Ti)

Standards and approvals

  • TA-Luft (VDI 2440)
  • Blow-out resistance (VDI 2200)


9631/PRIG Corratherm (with inner eyelet)
9631/T Corrachem (stainless steel profile ring with PTFE layer on both sides) Tmax 230 °C
9631/TRIG Corrachem (with inner eyelet) Tmax 230 °C

Forms of supply

  • Standard dimensions as per DIN EN 1514-4 and DIN EN 12560-6
