LSC6
Leakage collection reservoir

LSC6 <br/>Leakage collection reservoir
LSC6000A4

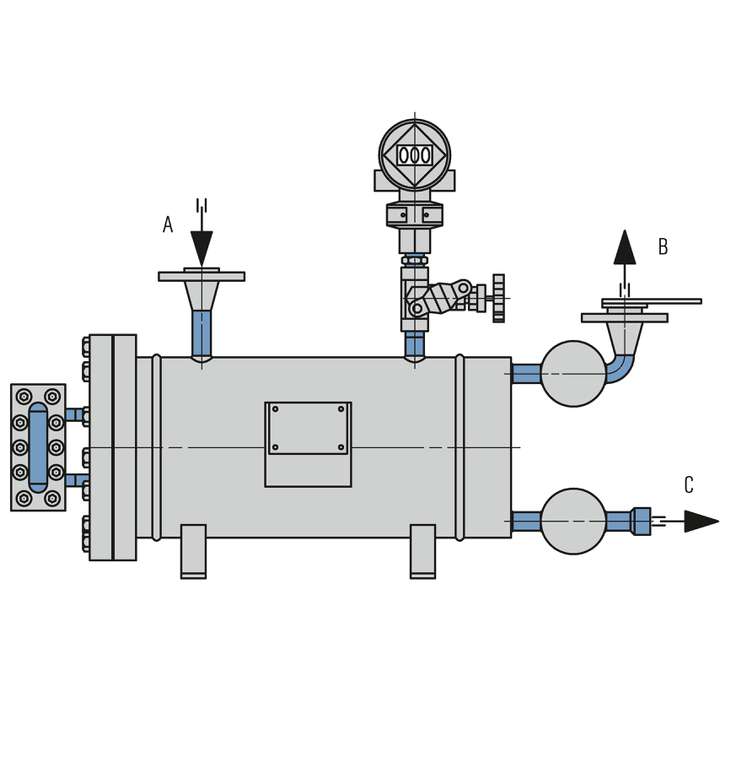

A From mechanical seal
B To vapor collection system
C Drain

LSC6
Leakage collection reservoir

Features

The EagleBurgmann leakage control systems of the LSC6000A4 range are utilized to collect condensing or mixed phase leakage - vapor passing through. A level indicator is installed to determine when the tank needs to be drained. A pressure gauge tracks and indicates seal leakage.

Advantages

  • Leakage collection tank with sight-glass
  • Modular system: combination with a wide range of monitoring instruments possible

Standards and approvals

  • API 682 / ISO 21049
  • API 682 4th ed. Cat. 2/3 - 2CW-CS

Functional description

The LSC6000-A4 leakage control system is used to discharge leakage from liquid-lubricated single seals with downstream safety gas seals where the leakage is liquid under atmospheric conditions.

Notes

Design and production in accordance with EU Pressure Equipment Directive PED 2014/68/EU available.
Design, calculation and production acc. to ASME VIII, Div. 1 available.

3rd party inspection, ASME stamp on request.

Recommended piping plans




Product variants

Designation LSC6000A4
Pressure Equipment Directive PED 2014/68/EU | ASME VIII, Div.1
Volume of vessel 14 l
Allowable pressure1) 44 bar (638 PSI)
Allowable temperature1) -20 °C … +120 °C
(-4 °F … +248 °F)
Connection seal leakage Flange 3/4", 600 lbs
Connection collecting system for condensing leakages 3/4" NPT(f)
Connection fluids collection system Flange 3/4", 600 lbs
Metal parts 316/316L
Gaskets PTFE, Burasil, Viton®, FKM


Other versions on request.

1) Design data, permissible working values depend on the actual conditions of service.

Similar products

LSA6 Leakage collection reservoir

The EagleBurgmann leakage control systems of the LSA6000 range in accordance with API Plan 65A consist of a leakage collection tank with integrated orifice and overflow pipe. The level can be monitored with the differential pressure transmitter which is supplied together with a five-way manifold valve.

LSB6 Leakage collection reservoir

In accordance with API Plan 65B, the EagleBurgmann leakage control systems of the LSB6000 range consist of a leakage collection tank with valve and overflow pipe. The level can be monitored with the differential pressure transmitter which is supplied together with a five-way manifold valve.

SPP6 Leakage detection system

The EagleBurgmann leakage control systems of the SPP6006A4 range consist of a pressure transmitter which is supplied together with a block and bleed valve as well as an orifice and drain valve.
